External Memory and Synchronization

Sometimes not everything an application does related to the GPU is done in Vulkan. There are various situations where memory is written or read outside the scope of Vulkan. To support these use cases a set of external memory and synchronization functions was created

The list of extensions involved are:

  • VK_KHR_external_fence

    • Promoted to core in 1.1

  • VK_KHR_external_fence_capabilities

    • Promoted to core in 1.1

  • VK_KHR_external_memory

    • Promoted to core in 1.1

  • VK_KHR_external_memory_capabilities

    • Promoted to core in 1.1

  • VK_KHR_external_semaphore

    • Promoted to core in 1.1

  • VK_KHR_external_semaphore_capabilities

    • Promoted to core in 1.1

  • VK_KHR_external_fence_fd

  • VK_KHR_external_fence_win32

  • VK_KHR_external_memory_fd

  • VK_KHR_external_memory_win32

  • VK_KHR_external_semaphore_fd

  • VK_KHR_external_semaphore_win32

  • VK_ANDROID_external_memory_android_hardware_buffer

This seems like a lot so let’s break it down little by little.

1. Capabilities

The VK_KHR_external_fence_capabilities, VK_KHR_external_semaphore_capabilities, and VK_KHR_external_memory_capabilities are simply just ways to query information about what external support an implementation provides.

2. Memory vs Synchronization

There is a set of extensions to handle the importing/exporting of just the memory itself. The other set extensions are for the synchronization primitives (VkFence and VkSemaphore) used to control internal Vulkan commands. It is common practice that for each piece of memory imported/exported there is also a matching fence/semaphore to manage the memory access.

2.1. Memory

The VK_KHR_external_memory extension is mainly to provide the VkExternalMemoryHandleTypeFlagBits enum which describes the type of memory being used externally.

There are currently 3 supported ways to import/export memory

  • VK_KHR_external_memory_fd for memory in a POSIX file descriptor

  • VK_KHR_external_memory_win32 for memory in a Windows handle

  • VK_ANDROID_external_memory_android_hardware_buffer for memory in a AHardwareBuffer

Each of these methods has their own detailed descriptions about limitations, requirements, ownership, etc.

2.1.1. Importing Memory

To import memory, there is a VkImport*Info struct provided by the given external memory extension. This is passed into vkAllocateMemory where Vulkan will now have a VkDeviceMemory handle that maps to the imported memory.

2.1.2. Exporting Memory

To export memory, there is a VkGetMemory* function provided by the given external memory extension. This function will take in a VkDeviceMemory handle and then map that to the extension exposed object.

2.2. Synchronization

External synchronization can be used in Vulkan for both VkFence and VkSemaphores. There is almost no difference between the two with regards to how it is used to import and export them.

The VK_KHR_external_fence and VK_KHR_external_semaphore extension both expose a Vk*ImportFlagBits enum and VkExport*CreateInfo struct to describe the type a synchronization being imported/exported.

There are currently 2 supported ways to import/export synchronization

  • VK_KHR_external_fence_fd / VK_KHR_external_semaphore_fd

  • VK_KHR_external_fence_win32 / VK_KHR_external_semaphore_win32

Each extension explains how it manages ownership of the synchronization primitives.

2.2.1. Importing and Exporting Synchronization Primitives

There is a VkImport* function for importing and a VkGet* function for exporting. These both take the VkFence/VkSemaphores handle passed in along with the extension’s method of defining the external synchronization object.

3. Example

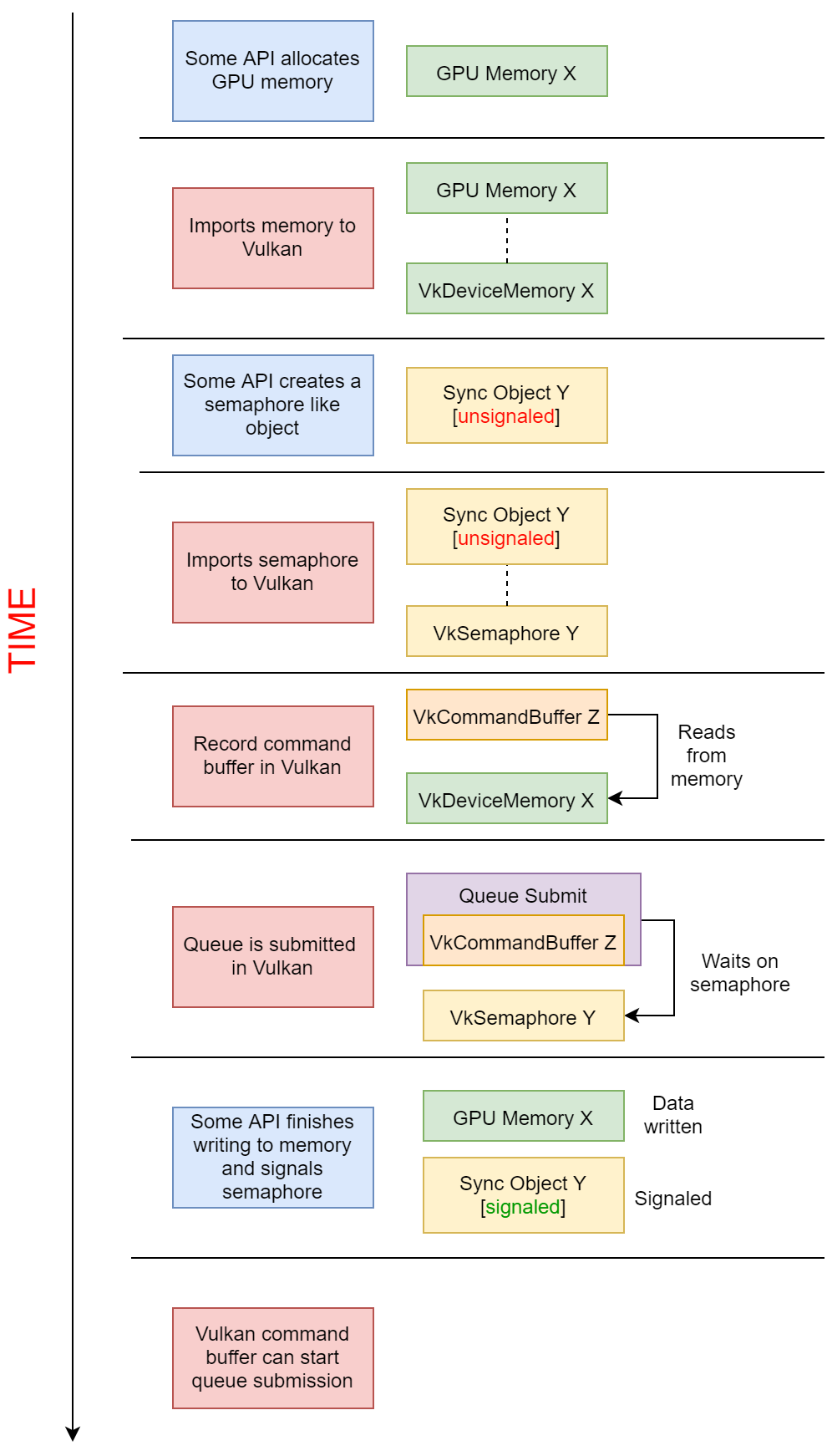

Here is a simple diagram showing the timeline of events between Vulkan and some other API talking to the GPU. This is used to represent a common use case for these external memory and synchronization extensions.
